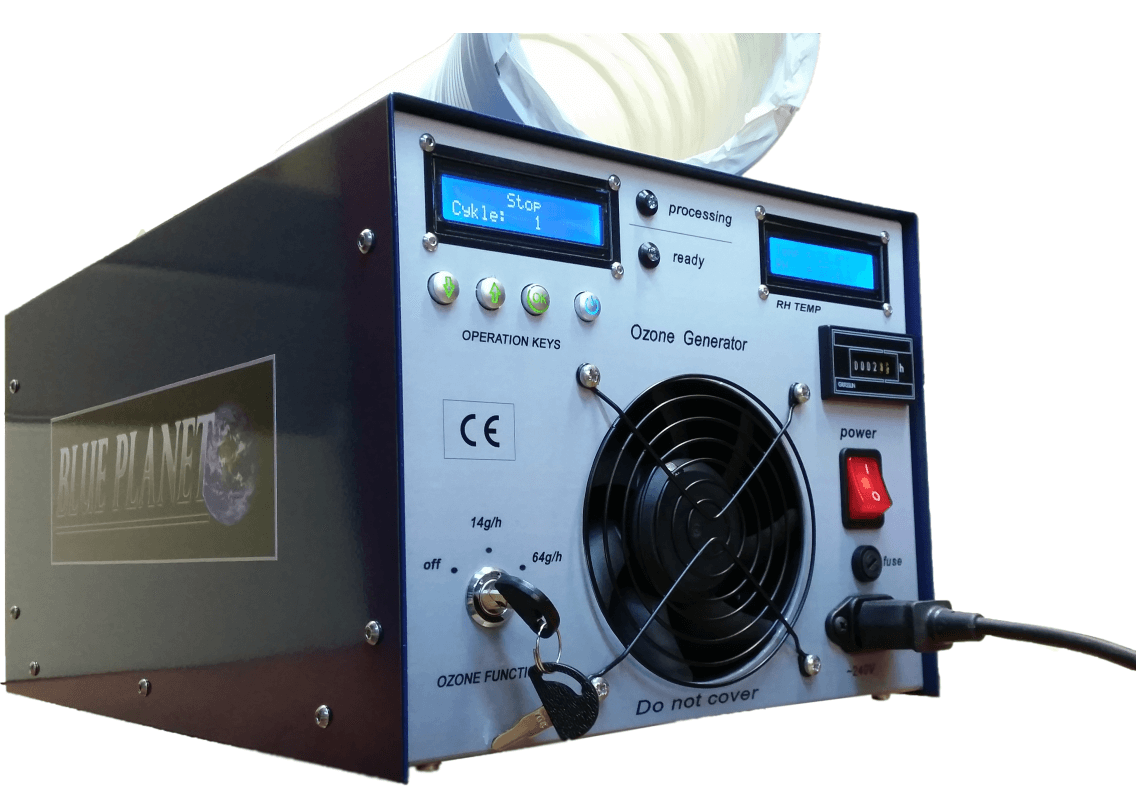

Ozone generator DS-64-RHR 64g/h Industrial ozonator

DS-64-RHR Industrial Ozone Generator - is one of the most effective ozonators on the Polish and European market. It is designed for ozonation of: food production halls, warehouses, cold stores, stationary ventilation systems, industrial air conditioning systems, fumigation of basements, attics.

Main product features:

• Microprocessor control
• USA technology (waterproof ozone mesh electrodes with a heat sink)
• Impact and transport resistant electrodes
• The function of extracting ozone from rooms
• hygrometer / thermometer built into the front panel
• The settings visible on the display are confirmed by a sound signal
• Key protection against unauthorized activation
• Short-circuit and electric shock protection
• Hour meter (useful for billing in a tool rental)
• Adjustable power in the range of 14000mg / h or 64000mg / h
• Ozone flow within 421 m3 / h (rooms up to 1800m3)
• Work time programming from 1min-9h
• Cyclical program (work, pause, cycles)
• Signaling program end with a light and sound signal
• Durable stainless steel, aluminum and powder coated steel construction
• lifetime warranty with annual servicing (TU service cost)
• 120mm outlet connection for sleeve / pipe when ozone is transferred to another location
• The letter R in the name of the generator means the outlet flange to which the remote ozonation pipe can be connected. The diameter of the collar is 120mm

Parameters:

• Method - corona discharge
• Supply gas - air
• Cooling - air
• Dimensions - 470/250 / 250mm
• Weight - 8.5 kg
• Power supply - 230V 50Hrz
• Power consumption - 580W max
• Housing - aluminum / stainless and acid resistant steel
• Working time - no limit
• Capacity - 64 g / h
• Ozone flow - 421 m 3
